| Transducer frequency | CHIRP 42-65 kHz & 130-210 kHz |
|---|---|
| Transducer power | 1kW |
| Transducer beamwidth | 16°-25°/6°-10° |
| Transducer maximum depth | 3000′ |
| Transducer cable length | 39 |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 12 |
| Transducer supported deadrise/transom angles | 3°-21° transom |

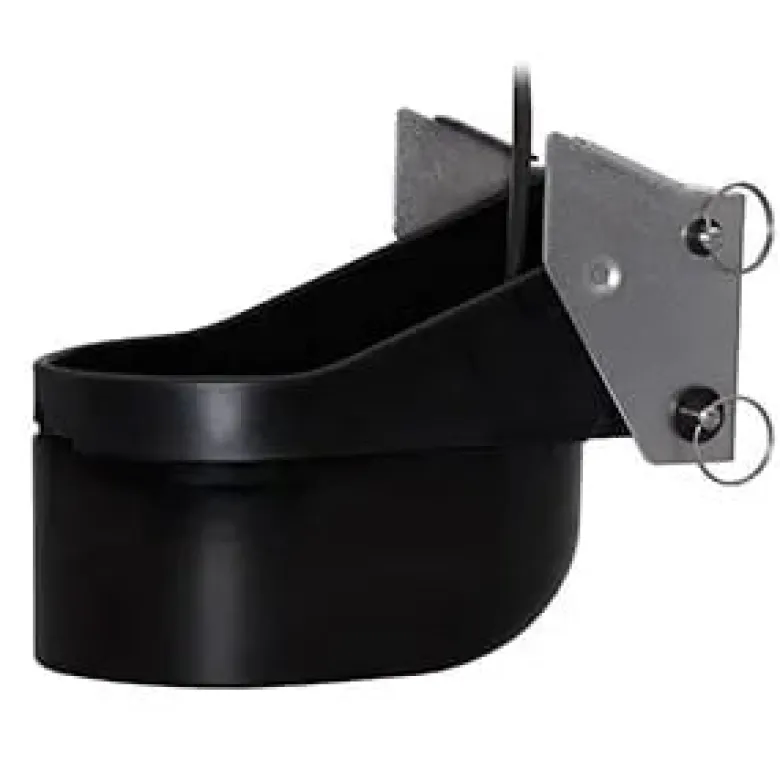

Our plastic transom mount performs well in deep water and provides exceptional bottom and water column detail.
The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
