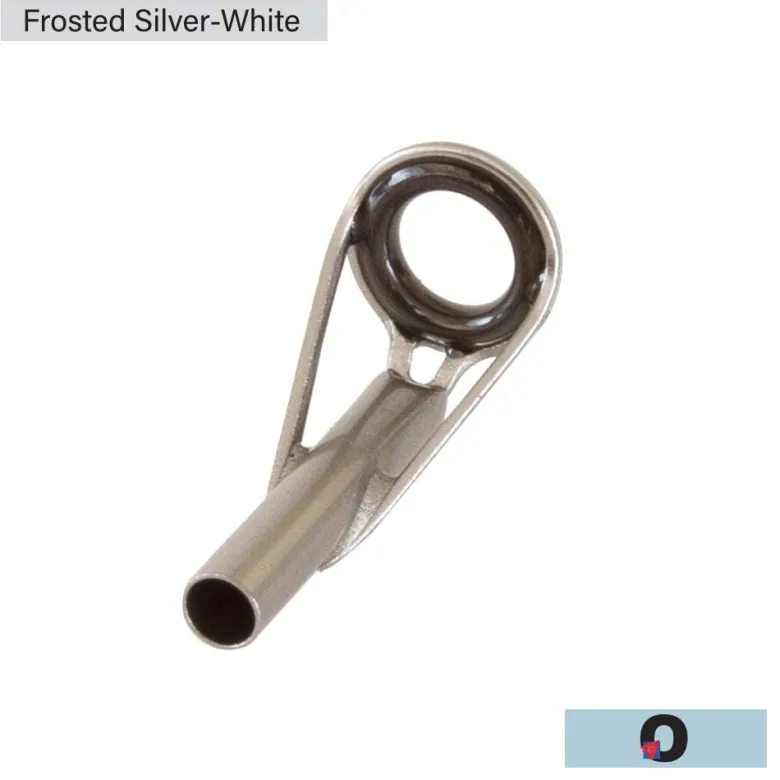

Standard tip for spinning and casting featuring a deep pressed frame.
Frame Material: Stainless
Frame Colour: Frosted Silver White
Ring Material: O Ring
| Size | L | H | O/D |
|---|---|---|---|
| mm | mm | mm | |
| 4.5/0.8 | 8.5 | 5 | 1 |
| 4.5/1.0 | 9.5 | 4.5 | 1.2 |
| 4.5/1.2 | 10.5 | 4.5 | 1.4 |
| 4.5/1.4 | 11.5 | 4.5 | 1.6 |
| 5/0.8 | 9 | 5.5 | 1 |
| 5/1.0 | 9 | 5 | 1.2 |
| 5/1.2 | 10.5 | 5.5 | 1.4 |
| 5/1.4 | 11.5 | 5 | 1.6 |
| 5/1.6 | 12 | 5 | 1.84 |
| 5.5/1.2 | 12 | 6 | 1.4 |
| 5.5/1.4 | 12.5 | 6 | 1.6 |
| 5.5/1.6 | 14 | 6 | 1.84 |
| 5.5/1.8 | 14.5 | 6 | 2.04 |
| 6/1.4 | 13 | 6.5 | 1.6 |
| 6/1.6 | 13.5 | 6.5 | 1.84 |
| 6/1.8 | 14 | 6.5 | 2.04 |
| 6/2.0 | 15.5 | 6.5 | 2.24 |
| 6/2.2 | 17 | 7 | 2.48 |
| 6/2.4 | 18.5 | 6.5 | 2.68 |
| 6/2.6 | 20.5 | 6.5 | 2.91 |
| 7/1.6 | 14 | 8 | 1.84 |
| 7/1.8 | 15 | 8 | 2.04 |
| 7/2.0 | 16 | 7.5 | 2.24 |
| 7/2.2 | 17.5 | 8 | 2.48 |
| 7/2.4 | 18 | 8 | 2.68 |
| 7/2.6 | 20.5 | 8 | 2.91 |
| 7/2.8 | 21.5 | 8 | 3.11 |
| 7/3.0 | 22 | 8 | 3.33 |
| 8/1.6 | 16 | 9 | 1.84 |
| 8/1.8 | 16 | 9 | 2.04 |
| 8/2.0 | 17 | 8.5 | 2.24 |
| 8/2.2 | 17.5 | 8.5 | 2.48 |
| 8/2.4 | 18.5 | 9 | 2.68 |
| 8/2.6 | 21 | 8.5 | 2.91 |
| 8/2.8 | 22.5 | 9 | 3.11 |
| 8/3.0 | 21.5 | 9 | 3.33 |
| 8/3.2 | 24.5 | 8.5 | 3.53 |
