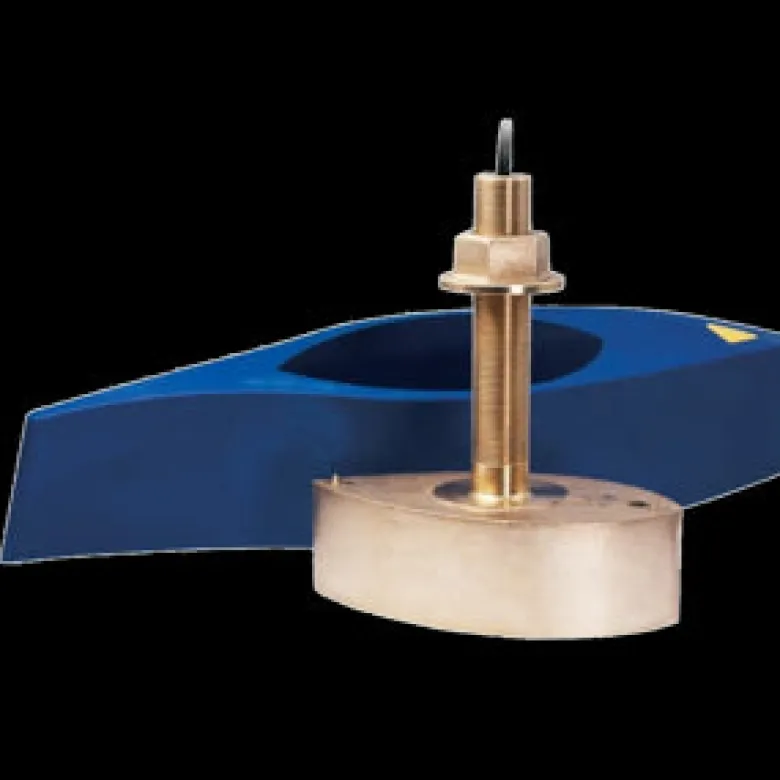

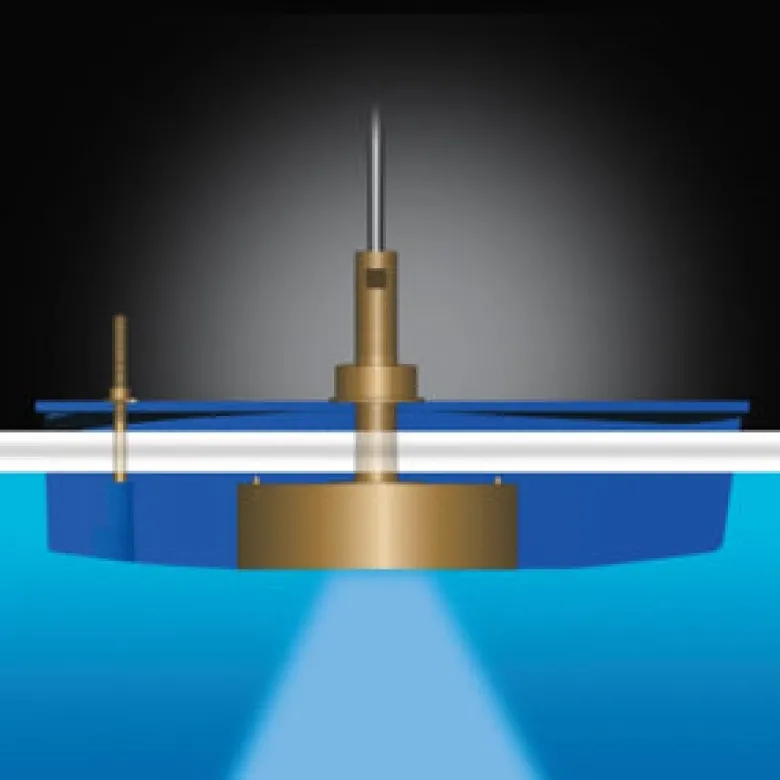

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152m (500′). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.
The included High-performance Fairing improves broadband results at speeds over 30knots (34 MPH).
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance from the low frequency
- Low frequency: 42 to 65kHz
- 25° to 16° beamwidth
- Maximum depth of 914m (3000′)
- High frequency: 150 to 250kHz
- 25° constant beamwidth
- Maximum depth of 152m (500′)
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200kHz plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Bronze housing with High-performance Fairing for optimal performance at higher speeds
- Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
- Patented Xducer ID®technology
